Description

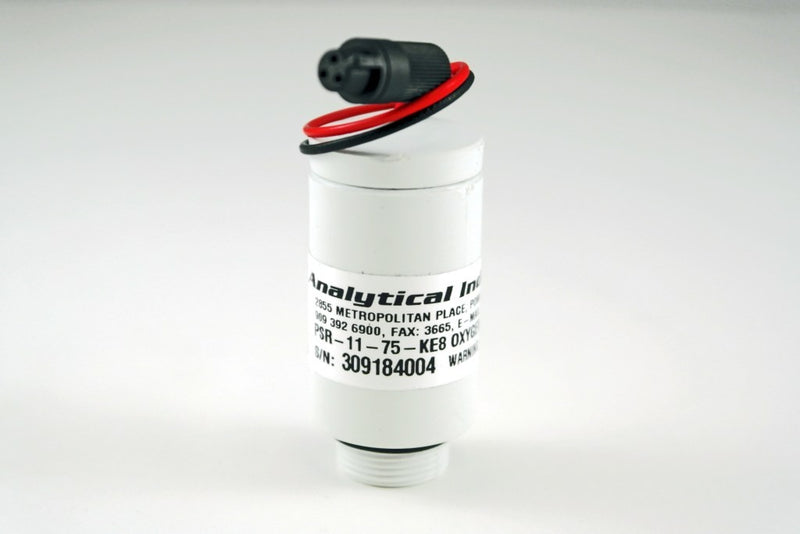

Analytical Industries PSR-11-75-KE8 Oxygen Sensor Replacement galvanic oxygen sensor with excellent stability and accuracy for use in SLE 5000.
Advanced galvanic type oxygen sensor with excellent stability and accuracy under stringent applications. All sensors are subjected to the most extensive stability test, output in air, 30″ of water column pressure test and stability at 100% oxygen. The widest range of oxygen sensors offered by Analytical Industries, Inc. are “Made in USA”
OEM Equipment:
SLE 5000 (International only)
Technical Specifications
Measuring Range 0-100%
Accuracy +/-2% of Full Scale
Signal Output 10-14 mV
Linearity +/-2% of Full Scale
Response T9013 sec
Temp Coefficient compensated
Operating Temp 0 to 45oC
Recommended Storage 0 to 25oC
Temperature Coefficient Compensated
Shelf Life 46 months
Humidity Non-condensing 0-99% RH
Expected Life 60 months
Warranty 18 months
Electrical Conn Winchester 3 Pin Connector
Advanced galvanic type oxygen sensor with excellent stability and accuracy under stringent applications. All sensors are subjected to the most extensive stability test, output in air, 30″ of water column pressure test and stability at 100% oxygen. The widest range of oxygen sensors offered by Analytical Industries, Inc. are “Made in USA”
OEM Equipment:
SLE 5000 (International only)
Technical Specifications
Measuring Range 0-100%
Accuracy +/-2% of Full Scale
Signal Output 10-14 mV
Linearity +/-2% of Full Scale
Response T9013 sec
Temp Coefficient compensated
Operating Temp 0 to 45oC
Recommended Storage 0 to 25oC
Temperature Coefficient Compensated
Shelf Life 46 months
Humidity Non-condensing 0-99% RH
Expected Life 60 months
Warranty 18 months
Electrical Conn Winchester 3 Pin Connector
